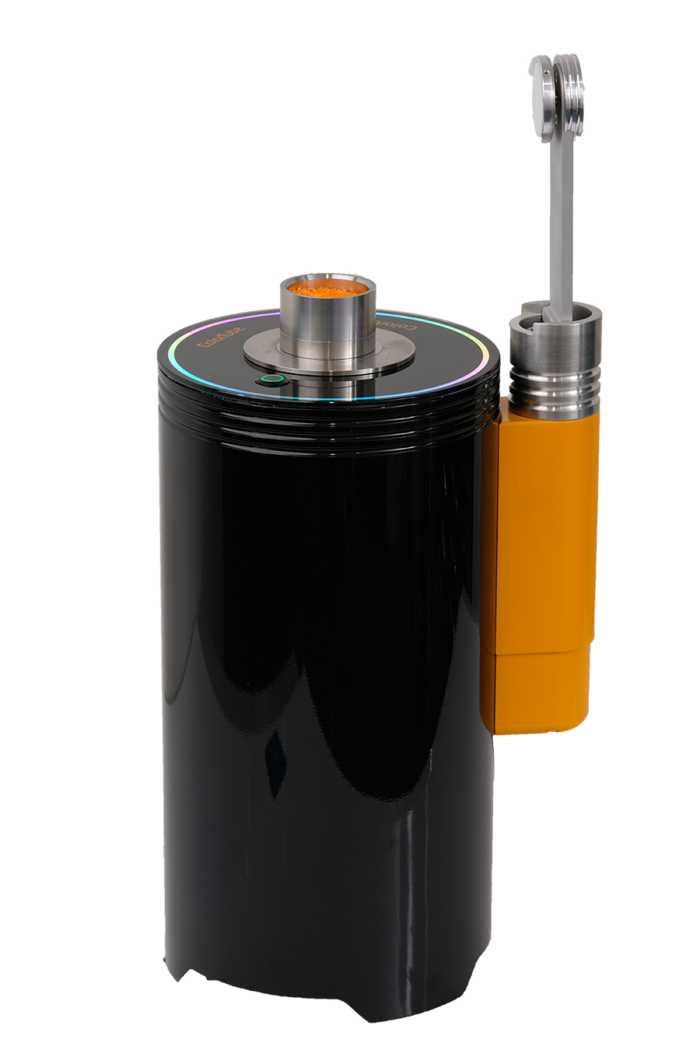

ColorLite ColorTube

The High-End solution with unique features setting it apart from the rest



  • Measures reflection with specular component include / specular component excluded (SCE / SCI) and transmission, absorption
  • High powered LED-light source with an optimal life span
  • Stepless adjustment of the measuring area from 3 to 30mm
  • Reproducibility < ΔE 0.01

Options: Pay only what is needed!

  • Transmission measurement: External sample measurement without dirtying the inner of the device
  • Probe-video- / desktop-picture
  • Infrared thermometer for measuring the sample temperature


With the new developed, high-quality ColorTube, solid and liquid samples can be measured in reflection, absorption and transmission mode. For the measurement of transparent samples, the spectrophotometer is optionally equipped with a third measuring channel. For this purpose, an additional measuring attachment is fitted outside the device.  This flexibility allows the device to measure a wide range of samples from opaque to translucent to transparent.

The ColorTube is characterized by a modern and functional design. Only high-quality components are used for the ColorTube, such as a robust aluminium housing, hardened glass cover and stainless steel components.

The heart of the two-channel system is an integrating sphere with a diameter of 140 mm and two spectrometers for the sample and reference channels. The measuring range is between 400 nm and 700 nm with a spectral scanning of 3.5 nm. The integrated gloss trap allows measurements with and without gloss exclusion. High-performance LED light sources ensure long-term stable measurement results. The UV component can although be set variably. Depending on the type of sample, the measuring surface can be infinitely adjusted from 3 mm to 30 mm.

The device can be connected via USB cable with each Windows PC. Together with the in scope of delivery, extensive quality assurance backup software offers the ColorTube the perfect complete solution to compare and review the values your products.

The measurement of pastes, powders and granules can be done easily with an optionally available glass cuvette. For this, the ColorTube can be brought into a vertical position.


The delivery includes:

  • Certified white standard PTB (Bundesanstalt für Materialforschung)
  • Black reference standard
  • Measuring aperture
  • PC software ColorDaTra Professional licence with free updates
  • USB interface cable and power supply
  • User manual

Measurement GeometryTwo channel d/8°
Diffuse illumination: 8° viewing
SCI (specular component included)
SCE (specular component excluded) switchable
Integrating sphere size 140 mm, barium-sulphat coating, stainless steel screen
Measuring area 3 mm to 30 mm continuously variable adjustable
Spectral Range/ Wavelength400 nm to 700 nm
Spectral ResolutionHolografic grating-Spectrometer
FWHM @500 nm < 10 nm
Scanning in 3,5 nm intervals
Resolution: 115 x 16-Bit per scan
Inter-Instrument Agreement < 0,2 ΔE - we can offer to adapt our devices to existing systems

Measurement range 0 to 175%
IlluminantsD65, D55, D50, A, C, F11
Individual illuminants can be implemented - for example LED
Standard Observer2° to 10°
RepeatabilityΔE < 0,01 CIELab
Colour Scales XYZ, Yxy, ΔE CIE L*a*b*, L*u*v*, L*C*h, Hunter Lab
Remission Spectrum with cursor displaying wavelength and % CIE-L*a*b* Diagram incl. tolerance limits
Quality ControlΔE CIELab; ΔL, Δa, Δb; ΔL, Δu, Δv; ΔL, ΔC, Δh;
Min/Max, PASS/FAIL, ΔECMC (1:1 und 1:2), CIE ΔE94,
ΔE2000, dynamic index
Metameric-Index for D65/A and D65/F11 according to DIN 6172

Other ValuesContrast: LRV (Light Reflectance Value) according to BS 8493:2008,
Various White-Index values
Various Yellowness-Index values

International Norms ASTM D 2244, D 6290, E 308, E 1164 DIN 5033, 5036, 6174, DIN EN ISO 11664, ISO 7724
Calibration With white standard certified by the PTB
(Physikalisch-Technische Bundesanstalt)
and black reference standard
Automatic white calibration
PC-Connection USB 2.0 and wireless comuniction and WiFi
Dimension 150 mm x 230 mm x 230 mm (H x L x W)
Light SourceWhite and blue LED´s
Life span > 20 years

d/8° probe head – the sphere geometry

The standardized d/8° measuring geometry is described in the DIN 5033. The probe is illuminated with a diffuse light source and measured at an angle of 8°. The diffuse light is generated in a so called integrating sphere. The gloss of the surface is me…

ActiveX – Communication tool

A list of commands in an ActiveX DLL library enables you to communicate with the spectrophotometer from your software.

ColorDaTra Professional

The ColorDaTra-database program is a very easy to use tool to review analyse protocol your colours   Basic function: Archiving of reference colours as standard Visualization of production models as CIE L * a * b * absolute and relative values and…

Extension possibility for transmission measurement

Extension possibility for transmission measurement. For the measurement of transparent samples, the spectrophotometer is optionally equipped with a third measuring channel. An additional measuring attachment is fitted outside the device. The measuremen…

Disposable cuvettes

Thickness 10 mm 12,5 x 12,5 x 45 mm 100 pieces, packed in Styrofoam box Material: Polymethylmethacrylate

Stainless steel cuvette for probe head (-adapter) MA38

Suitable for MA38-Set for measurement of inhomogeneous sample With replaceable anti-reflective glass bottom Height 35 mm Diameter: 50mm Diameter glass surface: 40 mm

Flexibility through variable measurement apertures

The ColorTube has changeable apertures, so that different measuring openings can be selected with one device. An integrated optic enables the enlargement or reduction of the measuring area. The following measuring openings are available: 6 mm 15 mm 30…

Extension possibility for transmission measurement

For the measurement of transparent samples, the spectrophotometer is optionally equipped with a third measuring channel. An additional measuring attachment is fitted outside the device. The measurement is not carried out in the device, but outside the…

Temperature in view

The colour of the sample material is highly temperature dependent. Neglecting this fact leads to false measurements. The unique feature of the ColorTube is the optionally available integrated infrared thermometer, which closes a big gap in the spectrop…

Measurement with specular gloss (SCI) and without specular gloss (SCE)

The d/8° geometry has two different principle of measurement. With our without gloss trap. The integrated gloss trap allows measurements with and without gloss exclusion Spin Mode (SCI Specular included) the gloss trap is closed. Both the colour and gl…

The perfect light source – LED’s

“The light source of the future” LED’s (Light Emitting Diodes) ensure an excellent long- and short-term stability of results and low maintenance costs. The pulse mode ensures that brightness levels stay high for a guaranteed 20 years.

Warning messages

Variable standard deviation threshold 0.01 to 2 for multiple scans Variable time dependent calibration warning 1h to 24h Variable temperature dependent calibration warning 0 to 9 When the difference between the standard and the sample is too high When…
