Portable Spectrophotometer

ColorLite sph870/ sph900

With accessories for inhomogeneous samples like

  • Granules
  • Powder
  • Food
  • Wood Surfaces
  • Building material

To measure granules or other inhomogeneous samples it is necessary to scan over a relative large area. ColorLite offers customers the adapters MA38 – 38 mm measuring area and MA80 to expand the measuring area to 80 mm in diameter. This means the accessory makes is possible to measure solids such as moulded plastics, as well as for measuring granules with only one spectrophotometer.

Description

The ColorLite sph900 has a trend-setting O-LED colour display and an intelligent interface that automatically detects connected accessories. This makes the measuring system very flexible and suitable for a large number of measuring applications. By using the integrating sphere adapter MA35 it is possible to measure both standard measuring geometries – 45°/0° and d/8° – with only one spectrophotometer. The sph900 spectrophotometer was developed by using only high quality components and complies with all current ASTM and DIN standards.

 Applications

  • Colour measurement and registration of goods intake and goods output according to DIN EN ISO 9000 standard
  • Objective quality control of colours within a production
  • Colour difference measurement to reference colours stored on the device

The delivery includes

  • Certified white standard PTB (Bundesanstalt für Materialforschung)
  • Aluminium case with foam padding
  • USB interface cable
  • Temperature controlled battery charger
  • User manual
Measurement Geometry45°/0° (area 3,5 mm) - or d/8° version -
according to DIN 5033
Optional: 45°/0° AND d/8° with
MA35-UK Adapter
or d/0° with MA38-Adapter
IlluminantsD65, D55, D50, A, C, F11
Standard Observer2° and 10°
Colour ScalesXYZ, Yxy, ΔE CIE L*a*b*, L*u*v*, L*C*h, Hunter Lab
Remission Spectrum with cursor displaying wavelength and % CIE-L*a*b* Diagram incl. tolerance limits
Quality Control
Tolerance Limits and Colour Differences
ΔE CIELab; ΔL, Δa, Δb; ΔL, Δu, Δv; ΔL, ΔC, Δh;
Min/Max, PASS/FAIL, ΔECMC (1:1 und 1:2), CIE ΔE94,
ΔE2000, dynamic index
Metameric-Index for D65/A and D65/F11 according to DIN 6172
Other ValuesContrast: LRV (Light Reflectance Value) according to BS 8493:2008,
Various White-Index values
Various Yellowness-Index values
Grey-Index
Hazen/APHA; JOD - (CA10-LS Adapter needed)
Spectral Light Source MeasurementSpectra and chromaticity measurement of light sources such as LED´s - optional
Sample Photos350 Colour photos to visualise scanning area
Dimension: 160 x 120 Pixel
Spectral Range/ Wavelength400 nm to 700 nm
Spectral ResolutionHolographic grating-Spectrometer
FWHM @500 nm < 10 nm
Scanning in 3,5 nm intervals
Resolution: 115 x 16-Bit per scan
DisplayHigh resolution O-LED colour display: High contrast and
low-Power 1/4-VGA, 320 x 240 Pixel
Repeatability< 0,03 ΔE CIELab
Light SourceWhite and blue LED´s
Life span > 20 years
Automatic Accessory RecognitionAn accessory is detected and device settings automatically modified accordingly
Ambient temperature
15 °C to 45 °C
Relative humiditymax. 85% not-condensing

d/0° probe head – measuring inhomogeneous samples

The d/0° measuring heads ( and -adapters) MA38 and MA80 illuminate the sample with a diffuse LED light source on an area of 38 mm or an 80 mm respectively. These versions are used to measure inhomogeneous samples such as granules, food, wood paints or…

ColorDaTra Professional

The ColorDaTra-database program is a very easy to use tool to review analyse protocol your colours   Basic function: Archiving of reference colours as standard Visualization of production models as CIE L * a * b * absolute and relative values and…

ColorDaTra Basic

The ColorDaTra-database program is a very easy to use tool to review analyse protocol your colours   Basic function: Archiving of reference colours as standard Visualization of production models as CIE L * a * b * absolute and relative values and…

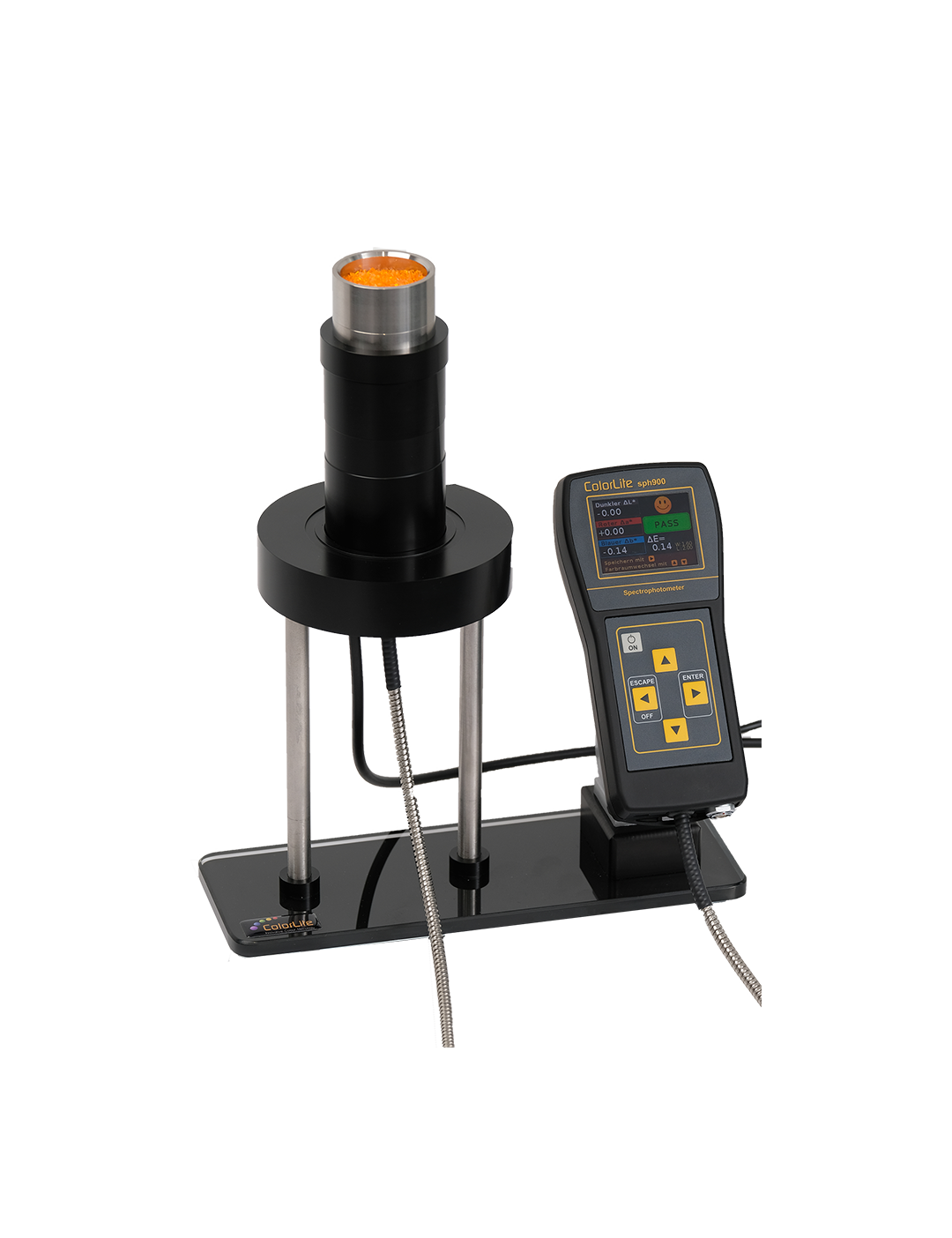

MA38-Set for measuring inhomogeneous samples

MA38 probe head to extend the measuring spot of the standard probe head to 38 mm. Light source high powered white LEDs, Casing made of Polyoxymethylen (POM), Operation and power supply from spectrophotometer, Attached to Holder for device, material alu…

MA80-Set for measuring of granules and inhomogeneous samples

MA80 probe head to extend the measuring spot of the standard probe head to 80 mm Measurement geometry d/0° Built-in light source high powered white LEDs Casing made of Polyoxymethylen (POM), Operation and power supply from spectrophotometer Attached to…

The perfect light source – LED’s

“The light source of the future” LED’s (Light Emitting Diodes) ensure an excellent long- and short-term stability of results and low maintenance costs. The pulse mode ensures that brightness levels stay high for a guaranteed 20 years.

High contrast colour O-LED display

Super high contrast O-LED full colour display provides the perfect interface between the instrument and user – ensuring very simple handling reducing training time and increasing reliability. The 180° viewing angle of the O-LED display works without ba…

User friendly

Only 4 Main levels: Measure – Calibrate – Settings – Memory Simple 4 button control. Real photos explaining things step-by-step, for example the calibration routines.

1000 standard colours in 5 folders and 3 ways of finding them

Store up to 1000 standard colours in 5 folders – each with an individual CIE dE or dL*,da*, db* tolerances to find the correct colour. Use one of three methods, including an automated best match function. Sort the standards by list or use our intellige…

High optical resolution of 3.5 nm steps

One hundred and fifteen (115) 16-Bit spectral values are measured for each scan, using a highly robust optical grating and Hamamatsu spectrometer. Wavelength 400 nm to 700 nm.  This ensures a good correlation, even with elaborate desktop spectrophotome…

FAST – 32-Bit ARM RISC processor

The central automated processing unit of the ColorLite spectrophotometer sph900 is a high performance 32-Bit RISC (Reduced Instruction Set Computer) processor. This enables a single scanning time of less than one second. Which means the overall time ne…

AAD – automatic accessory detection

The external probe head can be attached to a variety of accessories for measuring different types of samples. The spectrophotometer sph900 AAD automated changes internal settings depending on what accessory is attached.
